Beam-forming uses the property that when multiple signals are received at one point they add. By changing the delay on each antenna, a signal can be generated that will maximumly combine at the specified point. Without a delay 10 antennas each producing the same signal will produce a signal such as this.

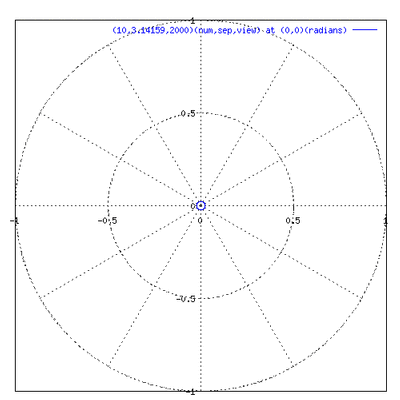

The small blue circle is the radiation pattern. It has a Directivity of just 1.045487. Directivity is calculated by taking the Maximum power and dividing it by the Average power. Setting each antenna to the same delay has no usable signal. However if one takes a specific point and calculates the relative delays to it. And then uses those delays when sending the signal. it produces a much more directional signal.

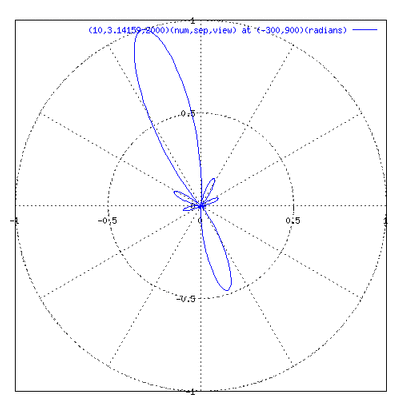

Directivity: 7.486404.
Each antenna had the following delays added to it:
The first value is x position, y position, delay aiming at (-300,900)
Antenna 0 position 5.083204,0.000000,0.000000
Antenna 1 position 4.112398,2.987832,3.141340
Antenna 2 position 1.570796,4.834414,5.704460
Antenna 3 position -1.570796,4.834414,6.702742
Antenna 4 position -4.112398,2.987832,5.750020
Antenna 5 position -5.083204,0.000000,3.214859
Antenna 6 position -4.112398,-2.987832,0.073276
Antenna 7 position -1.570796,-4.834414,-2.474696
Antenna 8 position 1.570796,-4.834414,-3.463372
Antenna 9 position 4.112398,-2.987832,-2.519862
Although the directivity is not that high the it is considerable more directive than just one antenna. Notice how the lobe forms to produce a symmetrical waveform. Each lobe balances the other to produce the maximum signal in desired direction.

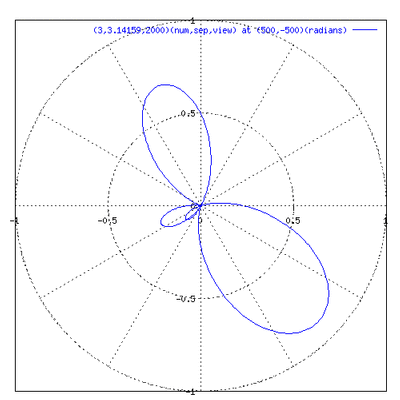

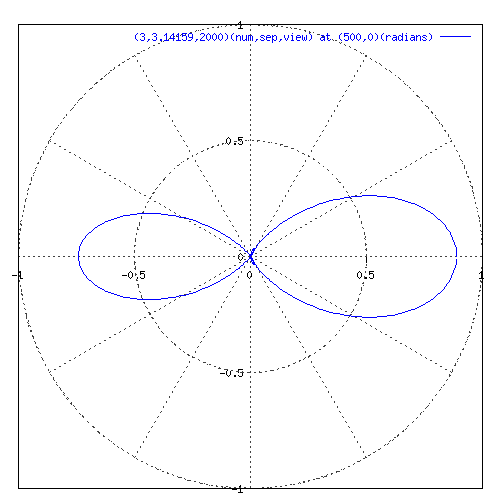

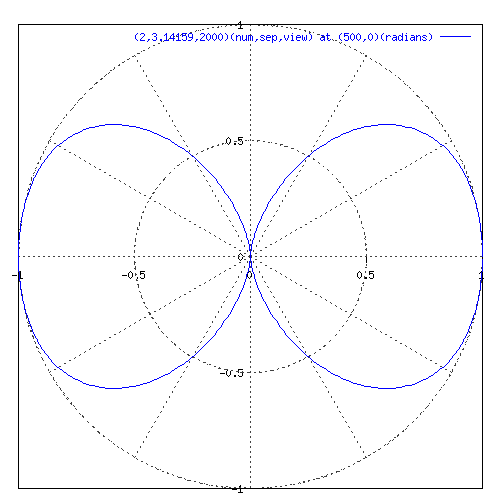

3 antennas
(click)
Directivity: 3.131173
Doing much better However still radiating significant power in unwanted directions.

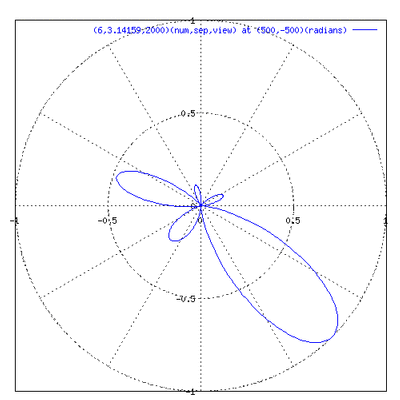

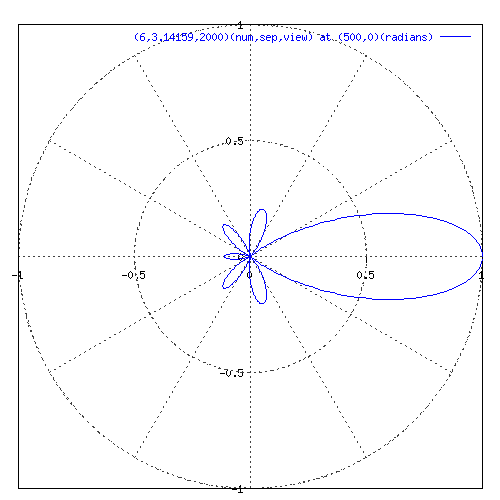

6 antennas
click
Directivity: 4.858402

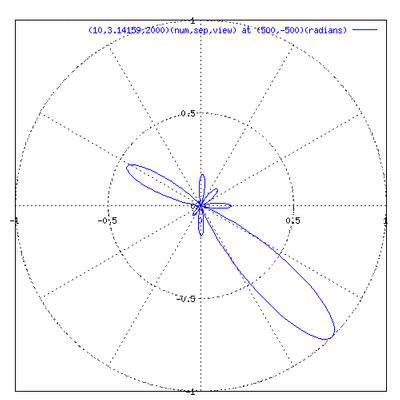

10 antennas
click
Directivity: 7.084568

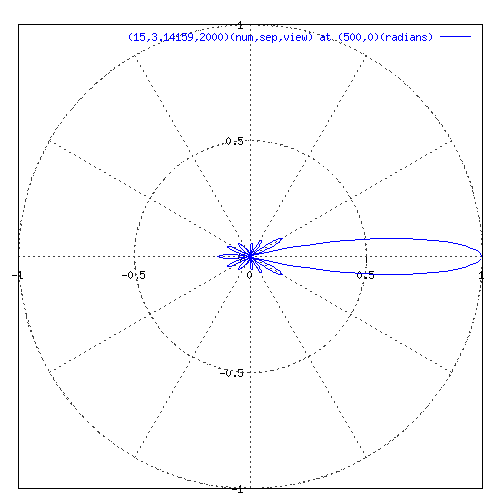

15 antennas
click
Directivity: 11.100104

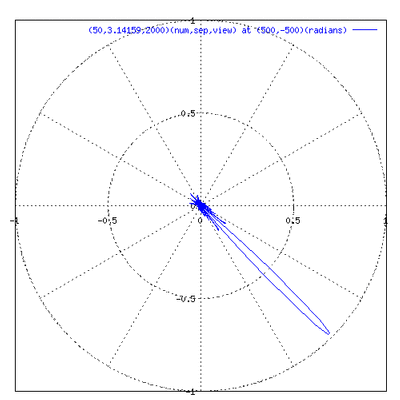

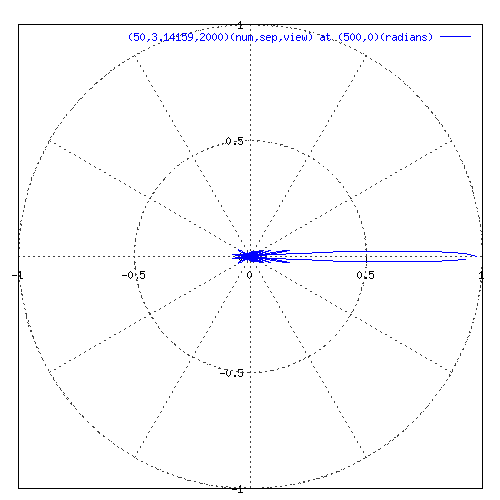

50 antennas
click
Directivity: 29.390900
As one can see when 50 antennas are used nearly all of the energy is going toward the intended point. However with just 10 or 15 antennas a similar result can be observed. Animated gif from 1-50 antennas

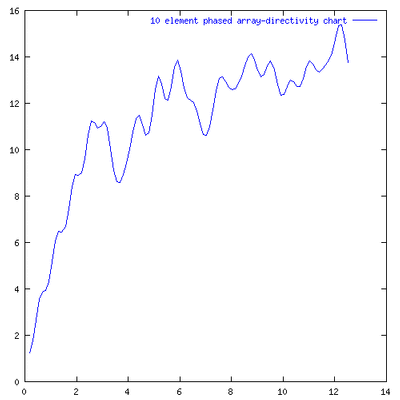

Right around Pi is the first local maximum. However there are other local maximums the farther apart the antennas are.

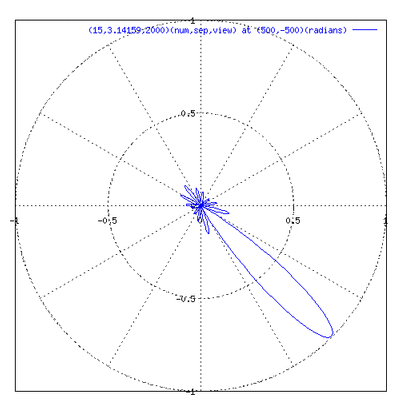

This is the graph at pi
click
Directivity: 11.100104

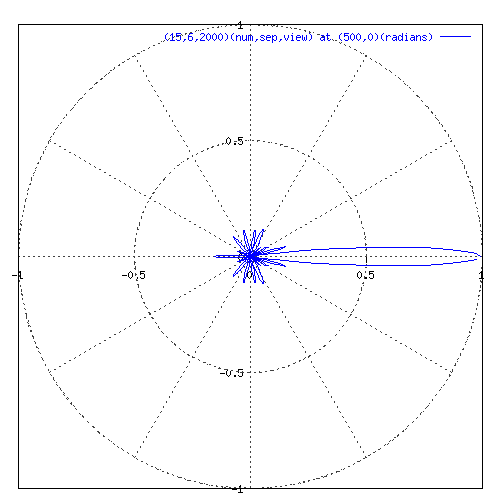

6 radians
click
Directivity: 13.594116

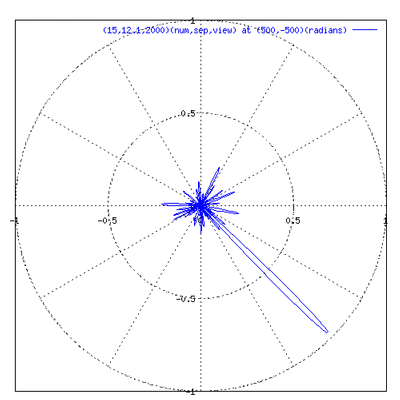

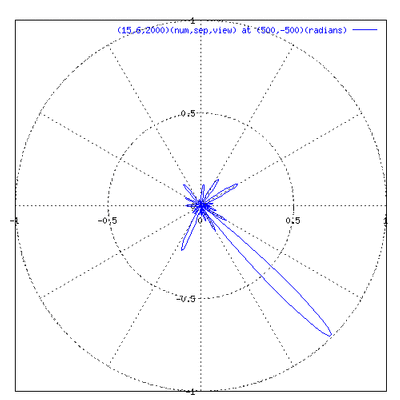

12.1 radians
click
Directivity: 15.194268

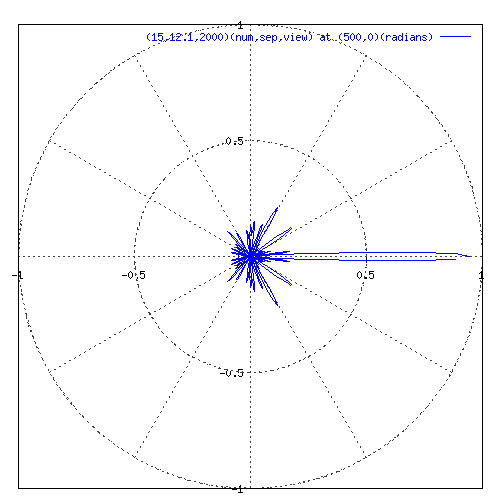

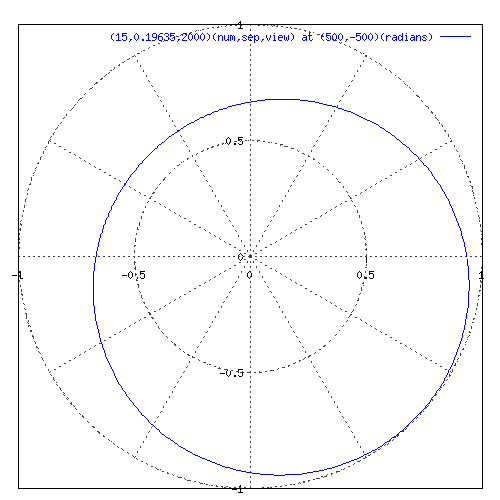

The graph at Pi radians shows a small symmetrical pattern. where as the one at 12.1 has many small lobes coming out in different directions. This can make things difficult when sending out more than one signal. Animated gif from Pi/16 to 16Pi
delays from 200 rads
Antenna 0 position 5.083204,0.000000,0.000000
Antenna 1 position 4.112398,2.987832,-0.993591
Antenna 2 position 1.570796,4.834414,-3.571290
Antenna 3 position -1.570796,4.834414,-6.711965
Antenna 4 position -4.112398,2.987832,-9.217469
Antenna 5 position -5.083204,0.000000,-10.166407
Antenna 6 position -4.112398,-2.987832,-9.217469
Antenna 7 position -1.570796,-4.834414,-6.711965
Antenna 8 position 1.570796,-4.834414,-3.571290
Antenna 9 position 4.112398,-2.987832,-0.993591
delays from 2000 rads
Antenna 0 position 5.083204,0.000000,0.000000 Antenna 1 position 4.112398,2.987832,-0.973042 Antenna 2 position 1.570796,4.834414,-3.518255 Antenna 3 position -1.570796,4.834414,-6.659838 Antenna 4 position -4.112398,2.987832,-9.197829 Antenna 5 position -5.083204,0.000000,-10.166407 Antenna 6 position -4.112398,-2.987832,-9.197829 Antenna 7 position -1.570796,-4.834414,-6.659838 Antenna 8 position 1.570796,-4.834414,-3.518255 Antenna 9 position 4.112398,-2.987832,-0.973042

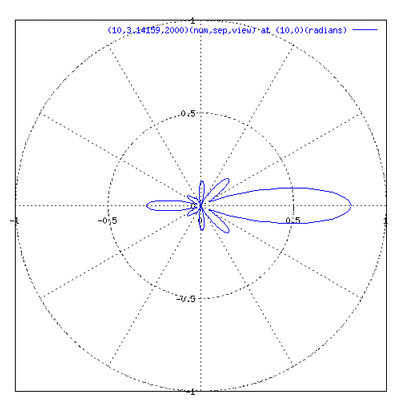

However up close between 30 and 100 radians the delay difference are enough to cause significant changes in the resulting pattern

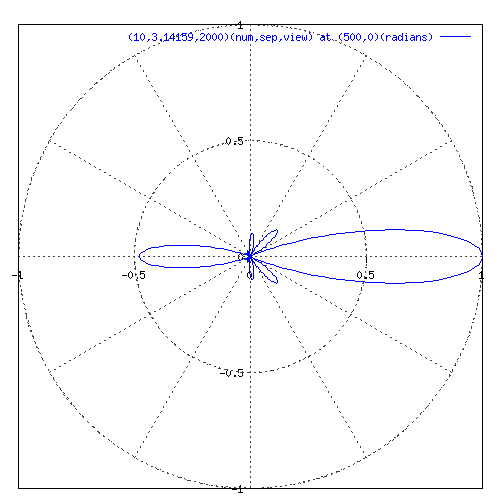

position is 10 rads away
click

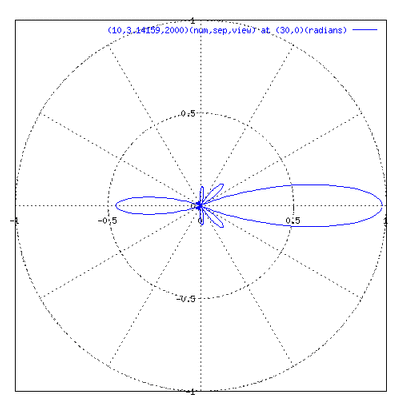

position is 30 rads away
click

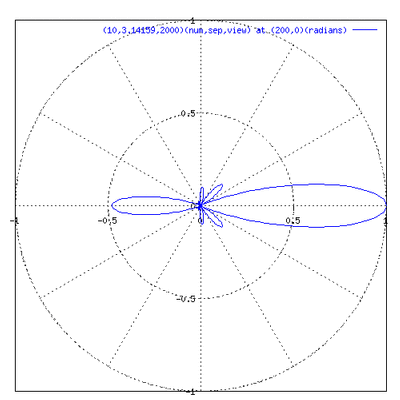

position is 200 rads away
click
This shows that broadcasting at close in points has less of an effect at great distances (the view radius is at 2000 rads).
